Custom Color Roller Track Hardware For Office Desk System ISO9001 Certification

Place of Origin China
Brand Name Diya
Certification ISO9001
Model Number customer size
Minimum Order Quantity 200 meters
Price USD2.48-4.55 per meter
Packaging Details cartons and bags
Delivery Time 5-25days
Supply Ability 10000 sets per month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Application Roller Track Material Metal And PU
Advantage Longtime Use Size Customers Size
Color Series Color
High Light

sheet metal joints

,

metal pipe joints

Leave a Message
Product Description

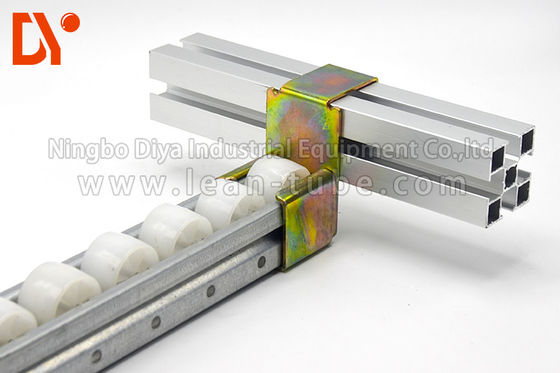

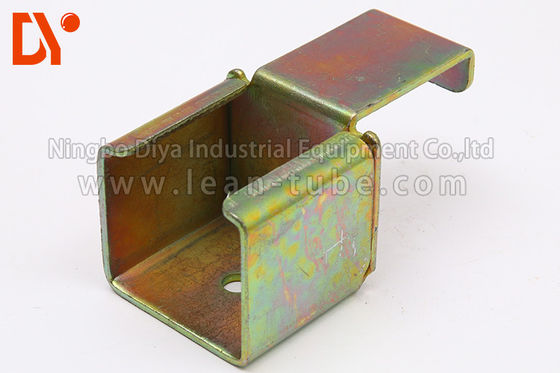

Connectors of roller track for PU material in roller track table or assemble line





Roller Track

Universal Roller Rails are used in all areas of conveying and warehousing. The design of the roller rails enables you to assemble commercially available 48 mm diameter rollers with special bolts, hollow rivets or M8 screws in a 50 mm, 75 mm or 100 mm etc. grid.

Several rollers can be fixed side-by-side in one, two, three or more rails. The rollers can also be offset to each other and combined in various configurations. With all these different features, the term "Universal" is certainly not over the top with these roller rails or wheel rails.

Plastic rollers with and without flanges have a load-bearing capacity of 10 kg. Steel rollers with or without flange can take up to 20 kg.



We would be pleased to test your applications on our roller rails and/or wheel rails.

The following models are available:

  • Steel and or plastic rollers with and without flange.
  • Special polypropylene (rigid plastic) or PUR (soft plastic) design
  • Max. profile length 6167mm

COLLI ROLLER TRACKS

for storage and conveyor systems for medium-weight goods



The Colli Roller Track combines a number of advantages. It is the only solution for many logistics applications.

Ball bearing-mounted rollers, with a load-bearing capacity of up to 40 kg, are fitted in a sturdy U-profile.

Colli Roller Tracks can be used in the temperature range from -30 °C to +100 °C



The following models are available:

  • Ball bearing-mounted plastic rollers (D = 54 mm), with and without flange
  • Max. profile length 6033 mm

PALLET ROLLER TRACKS



for the transport of pallets parallel or at right angles to the conveyor

You can transport pallets parallel or at right angles to the direction of their skids.

Pallet Roller Tracks are one of the most economical solutions in pallet transport. Their main use is in flow storage systems. However, stand-alone models are also possible as displacement or gravity solutions.

Pallet Roller Racks are robust pieces of equipment. The steel rollers have a load-bearing capacity of 150 kg. The ball bearings are maintenance-free and have a long service life.



The following models are available:

  • 3 standard plastic or steel rollers, untreated or galvanised steel rollers with and without flange
  • Max. profile length of 6006 mm, 3 profile models (low, high and low with one-sided lateral guide)
  • Roller guard, end stops, feed-in aids, manual pallet separators

MULTIDIRECTIONAL ROLLERS

to move all flat-based goods in all directions



Multidirectional Rollers are used wherever you need to rotate, sort, divert, feed or pick flat-based containers, load carriers, packages, boxes or workpieces.

Create any size of bed surface with Multidirectional Rollers. The goods being transported should not exceed the following weights:

D=50mm 100 kg
D=60mm 200 kg
D=80mm 400 kg



(Load-bearing capacity/m with the narrowest spacing!!)

The rollers are made of polyamide and can be used in the temperature range between -30 °C and +90 °C.

The following models are available:

  • 50, 60 und 80 mm in diameter
  • Soft model D = 60 mm made of soft plastic (PUR)
  • Max. profile length 6033 mm

Our Services

1. We have professional engineer to do after-sale service if needed.

2. Local service will be done by our local agent if needed.

3. OEM is welcomed or design as customer request.
