PALLET ROLLER TRACKS

for the transport of pallets parallel or at right angles to the conveyor

You can transport pallets parallel or at right angles to the direction of their skids.

Pallet Roller Tracks are one of the most economical solutions in pallet transport. Their main use is in flow storage systems. However, stand-alone models are also possible as displacement or gravity solutions.

Pallet Roller Racks are robust pieces of equipment. The steel rollers have a load-bearing capacity of 150 kg. The ball bearings are maintenance-free and have a long service life.

The following models are available:

• 3 standard plastic or steel rollers, untreated or galvanised steel rollers with and without flange
• Max. profile length of 6006 mm, 3 profile models (low, high and low with one-sided lateral guide)
• Roller guard, end stops, feed-in aids, manual pallet separators

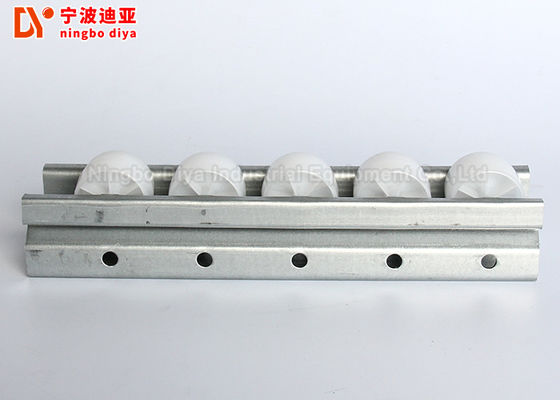

to move all flat-based goods in all directions

Multidirectional Rollers are used wherever you need to rotate, sort, divert, feed or pick flat-based containers, load carriers, packages, boxes or workpieces.

Create any size of bed surface with Multidirectional Rollers. The goods being transported should not exceed the following weights:

D=50mm 100 kg
D=60mm 200 kg
D=80mm 400 kg

(Load-bearing capacity/m with the narrowest spacing!!)

The rollers are made of polyamide and can be used in the temperature range between -30 °C and +90 °C.

The following models are available:

• 50, 60 und 80 mm in diameter
• Soft model D = 60 mm made of soft plastic (PUR)
• Max. profile length 6033 mm
